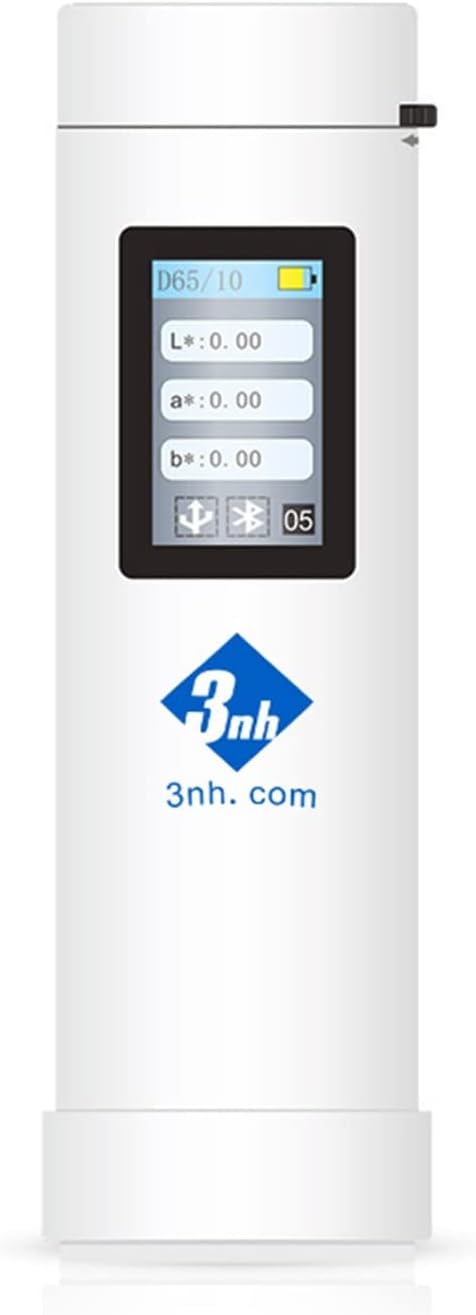

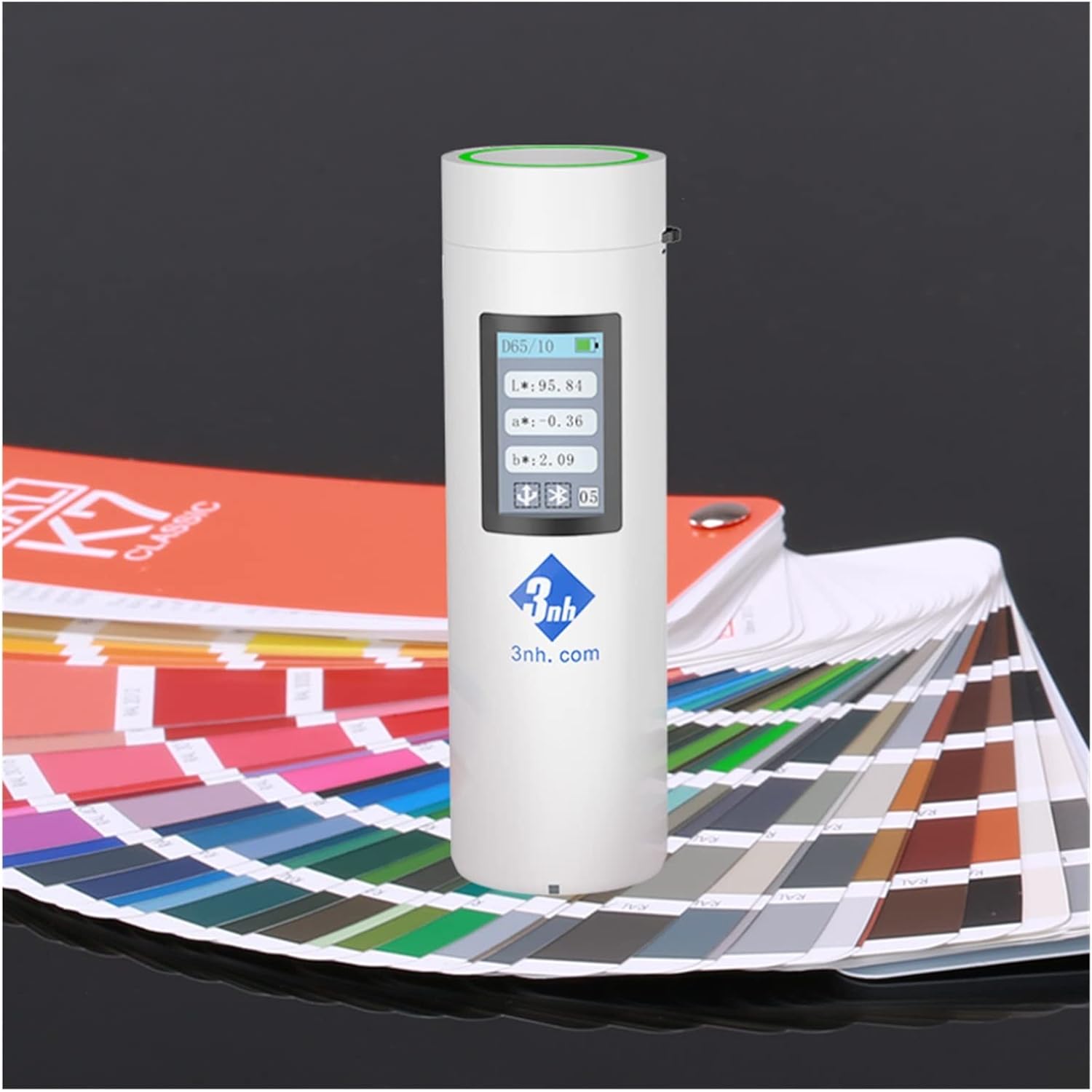

Color Analysis, Portable Colorreader CR1 2 In 1 Micro Colorimeter And Cellphone Accuracy 0. 8mm Aperture 400～700nm,Multifunctional Colorimeter

Product Name & Mode：CR3（Advanced Edition） Color ReaderGeometry：D/8（Diffuse illuminance, 8°reception, SCI）, Conforms to standards CIE No.15，GB/T 3978.Features:Used for color difference quality control in plastic electronics, paint and coating, textile and garment printing and dyeing, ceramics and other industries;Small size, easy to carry, search for the color cards and multifunction expanded through smartphone APPIntegrating sphere size:Φ20mmIlluminant:Full spectrum LED light sourceSpectro device:Filter spectroSensor:CMOS Dual light path sensorWavelength Range:400～700nmMeasuring Aperture:Φ8mmSCI/SCE:SCIColor Spaces:CIE LAB, XYZ, Yxy, LCh, CIE LUV, s-RGB,HunterLab,βxy, DIN Lab99Color Difference Formula:ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99,ΔE(Hunter)Other Color Index:WI(ASTM E313，CIE/ISO, AATCC, Hunter),YI(ASTM D1925，ASTM 313), Metamerism Index Mt, Color fastness, color strength, and Opacity, 555 color classification, Munsell(C/2) (implemented by mobile APP)Display Accuracy:0.01Observer Angle:2/10°Light source:D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF),F8,F9,F10(TPL5),F11(TL84),F12(TL83/U30)Display:Sample chromaticity value, color difference value, pass/fail result, color simulation, color deviation, reflectance (partly through mobile APP)Measuring Time:1.0srepeatability:Color：ΔE*ab within 0.05（After warm-up calibration, the average value of measuring the whiteboard 30 times at an interval of 5s）Metrology requirements:Pass National MetrologyMeasurement Mode:Single measurement，Average measurement（2~99times）（Implemented through smartphone App）Dimension:Ø30X100mmWeight:88gBattery:Lithium battery, can do tests continuously for 12000 times in a single full chargeLight source lifespan:5-years more than 3 million times measurementsDisplay screen:IPS full color screen, 1.14 inchInterface:Type-C USB; Bluetooth 5.0; ButtonsData storage:Standards: 10pcs, Samples: 100pcs. Mass storage can be expanded through mobile APPData review:The instrument has its own measurement data review functionWhite calibration:Non-contact automatic calibrationSettings:Instrument can set parametersLanguage:Chinese，EnglishWorking Temperature range:0~40℃，0~85%RH（No condensation），Altitude：lower than 2000mStorage Temperature Range:-20~50℃，0~85%RH（No condensation）Standard Accessories:Data cable, manual, calibration box, SQCX PC Color quality management software, MOBCCS APP (download from official website)

• 1. Instant and Precise Color Measurement:Repeatability less than 0.05, display accuracy 0.01, one light press can bring you precise color measurement.
• 2. Non-contact Auto Calibration:The use of professional non-contact automatic black and white board calibration technology to avoid direct transmission of dirt during the measurement process to the whiteboard, completely solves the problem of separation between the whiteboard and the dust cover required internationally, and ensures the zero position of the whiteboard "this starting line" The long-term accuracy of "makes you more at ease and worry-free when using it."
• 3. Multifunctional “Smart Button”:The built-in "smart button" of the instrument can independently complete the measurement function setting or test data review. It does not need to connect a mobile phone and a computer. A single machine can realize all the functions of the color difference meter; and at the same time, it can be connected to the mobile phone APP or computer software, taking into account the various functions of the color difference measurement and color management.
• 4. Professional integrating sphere dual optical path design:Professional advanced integrating sphere coating, dual optical path sensor and full-spectrum light source ensure the stability and accuracy of the measurement results.
• 5. Diversified Data Display Modes:The ColorReader CR3 with APP can directly display the sample color value, color difference value, pass/fail result, color simulation, color deviation, reflectance and other data, which is convenient for viewing and greatly improves the user's work efficiency.
