Ideal Electrical 89-5048 BNC Compression Connectors, Coax Compression Connector for RG-6 Cable Cable, 35 Connectors, Jar

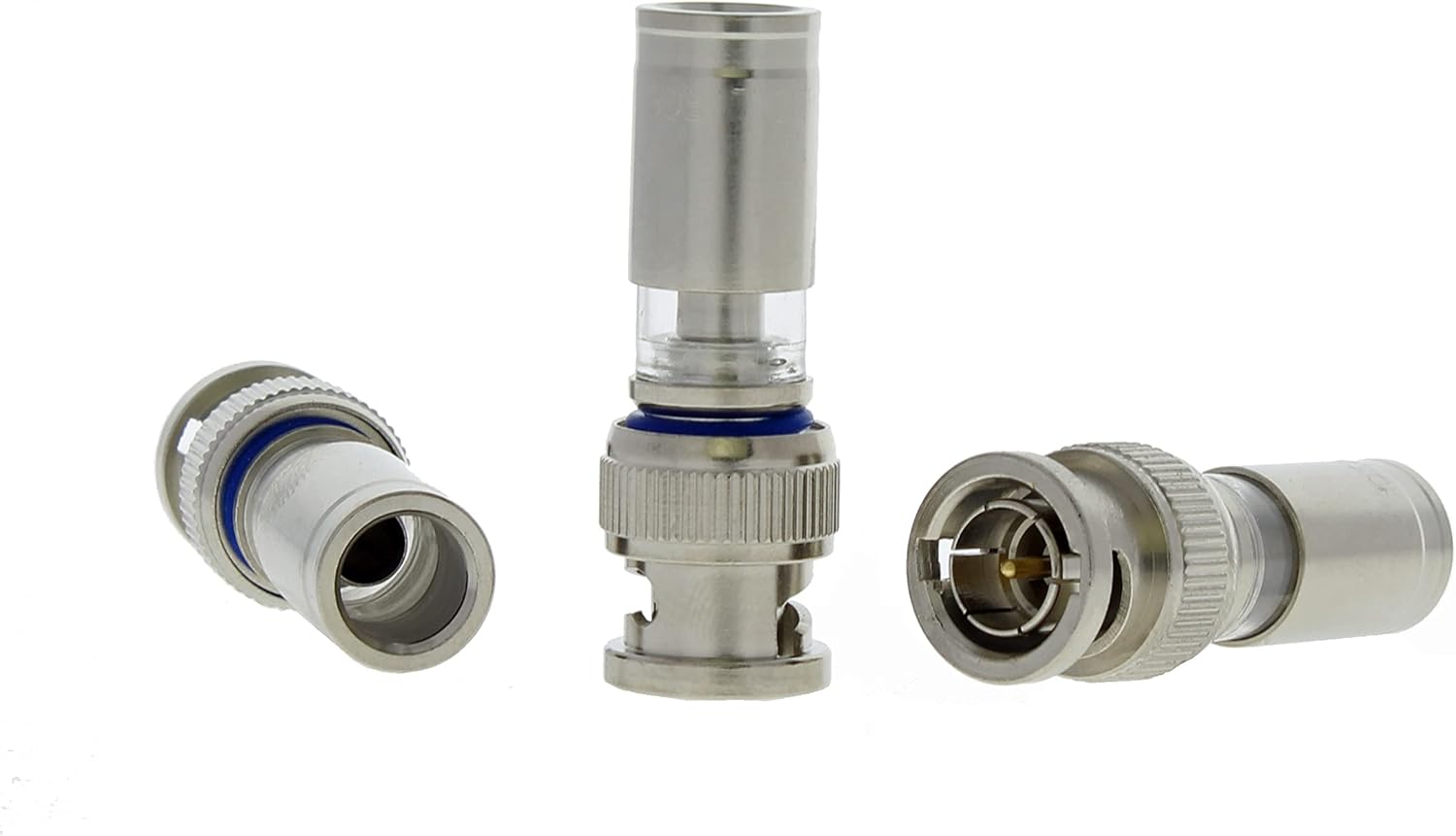

Installing one-piece compression BNC connectors just got easier. No more uncertainty when inserting the cable into the connector. No more collapsed center pins. No more wasted connectors and rework time on the job. With the patented InSITE Technology feature, now standard on all IDEAL BNC and right angle (90°) compression connectors, field termination of these blind entry connectors is simpler, faster and now provides a higher performance connection for all applications from CCTV to HD Video. The InSITE window is a 360° clear window which allows the installer to verify that the prepped cable has been inserted far enough into the connector to make contact with the fixed pin-before the connector is compressed. All IDEAL compression connectors require a ¼” x ¼” industry standard coax preparation. The prepped cable is then inserted into the connector until the folded braiding is visible within the InSITE window. No measuring, no jacket marking, no guesswork – a confident connection every time.

• ADVANCED TECHNOLOGY: InSITE technology features a 360 clear window to enable the installer to verify the connection before the connector is compressed. It allows for a confident connection every time.
• CONSTRUCTION: One piece connectors feature plastic and nickel-plated brass bodies that offer excellent corrosion resistance. The gold-plated fixed center pin accepts 23-18 AWG solid center conductors fixed pin won’t come lose or pop out of the connector. A redesigned funneled pin entry - centers angled pins, reduces pin collapsing
• COAX COMPRESSION CONNECTOR: Designed for optimal performance on 75 coaxial cables. These cable specific BNC connectors utilize standard 1/4 x 1/4 in. cable preparation. Smoother and easier mating with sockets through increased BNC head travel range
• APPLICATIONS: These BNC connectors are used in security, CCTV, and analog camera installations. These can alo be used in other intrumentation and video based installations. Frequency range of 0 MHz to 3 GHz.

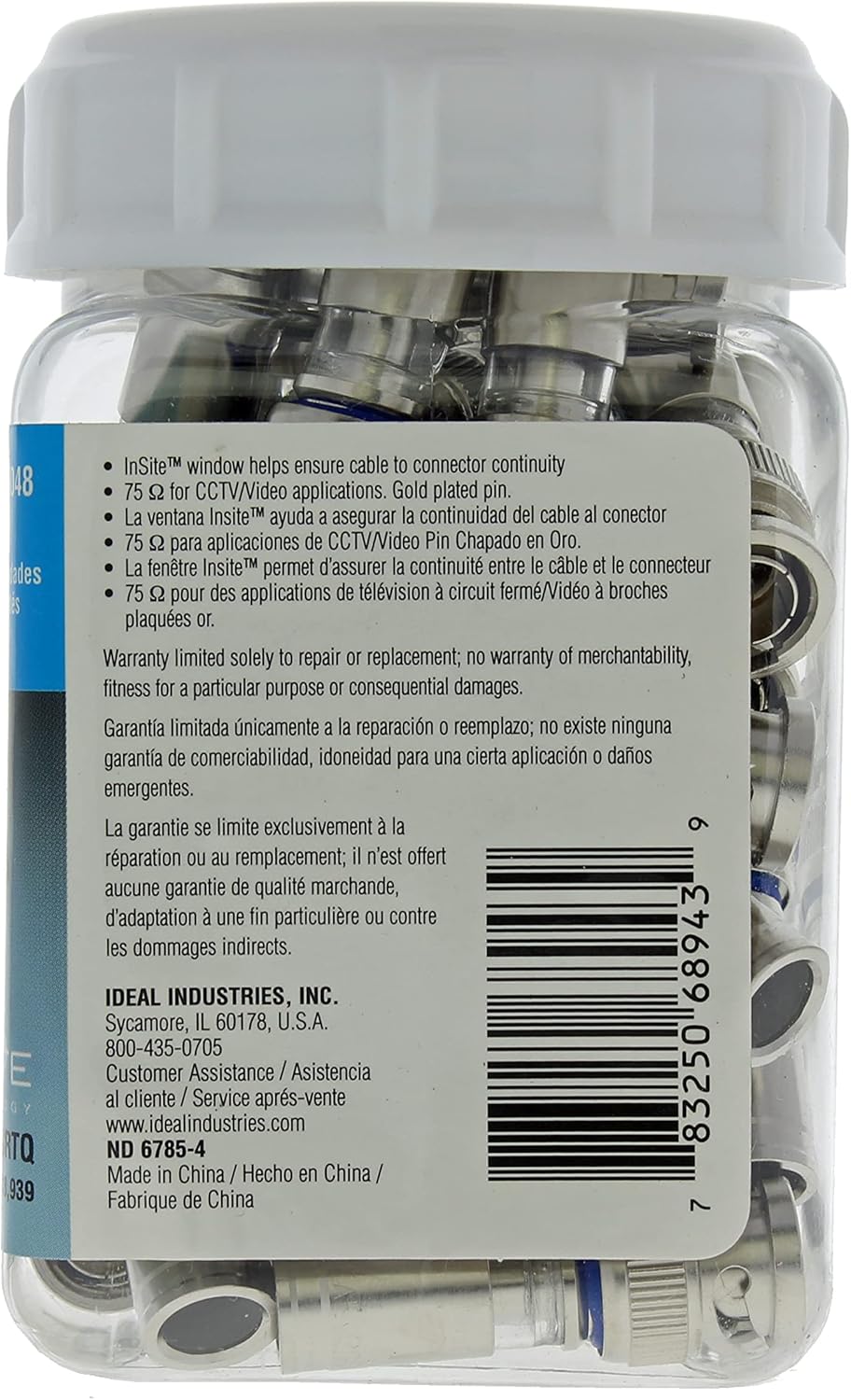

• SPECIFICATIONS: Package includes [35] RG-6 BNC Compression Connectors, for RG-6/RG-6 Quad/RG-6 Plenum/RG-6 Plenum Quad coax. Compatible with cables having a .168 - .183 in. dielectric diameter range, and outer jacket diameter range of 0.226 - 0.305 in., Requires an industry standard 1/4 in. x 1/4 in. cable preparation, 75-Ohm nominal impedance, frequency range: 0 MHz to 3 GHz
